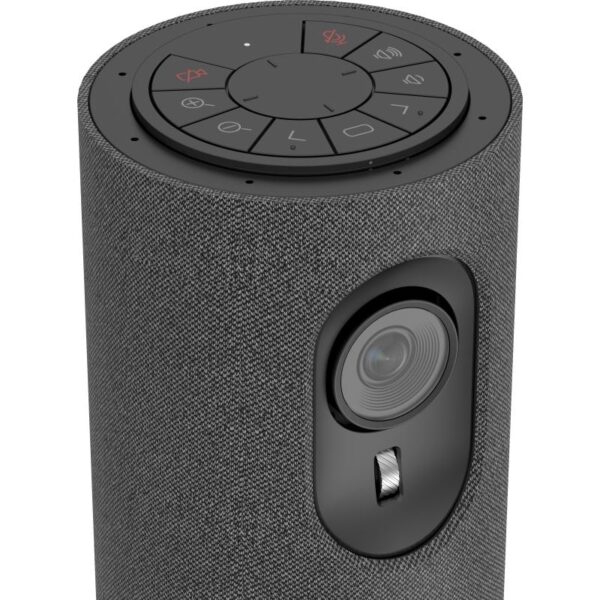

2MP Hikvision Portable Conference Camera(DS-UVC-X12)

Camera

• Image Sensor1/2.7″ 2 MP CMOS
• Max. Resolution1920 (H)×1080 (V)
• Min. Illumination0.1 Lux @ (F2.2, AGC ON)
• Shutter Time PAL: 1/25 s to 1/50,000 s, NTSC: 1/30 s to 1/50,000 s
• Angle Adjustment Tilt: -10° to 10°
• Zoom2 ×

• Lens
• Lens Type2.8 mm fixed focal lens
• Focal Length & FOV horizontal FOV 110°, vertical FOV 75°, diagonal FOV 120°
• Object Distance Range0.3 m to ∞

• Microphone
• Amount4
• Polar Pattern360° Omni-directional
• Pickup Distance In a radius of up to 5 m
• Sensitivity-38 dBV/Pa
• SNR66 dB(A)
• Frequency Response100 Hz to 8 kHz
• Type MEMS
• 3A Algorithm AEC, ANS, AGC
• Sampling Rate16 kHz/48 kHz

• Speaker
• Rated Power5 W
• Speaker Range In the radius up to 8 m
• Total Harmonic Distortion (THD)<3%@1 kHz
• Maximum Output Loudness87 dBSPL@1 m, 1 kHz
• Effective Bandwidth (-10 dB)170 Hz to 20 kHz

• Functions
• Image Function Auto/Manual/Fixed White Balance, Backlight Compensation, Left/Right Flip / Up/Down Flip/Center Mirror
• Audio Function Supports smart noise reduction, echo suppression, anti-reverberation, squeal suppression to enhance speech quality and offer audio in high quality
• LED Indicator

  Solid Red: Mute

  Solid White: Working Normally

  No Light: Standby

• Power Indicator

  Solid red: low power (≤15%)

  Solid orange: medium power (15%＜x≤30%)

  Solid white: enough power (30%＜x≤100%)

• Communication
• Communication Method USB cable
• Wired Communication Distance2 m

• Battery
• Capacity7.2 V/2450 mAh
• Charging Temperature0 ℃ to 45 ℃ (32 °F to 113 °F)
• Discharging Temperature-20 ℃ to 60 ℃ (-4 °F to 140 °F)
• Storage Temperature0 °C to 35 °C (32 °F to 95 °F) for one year

• Image
• Frame Rate

  MJPG:

  1920 × 1080@30 fps/25 fps

  1280 × 960@30 fps/25 fps

  1280 × 720@30 fps/25 fps

  640 × 480@30 fps/25 fps

  640 × 360@30 fps/25 fps

  YUV2:

  1920 × 1080@5 fps

  1280 × 960@5 fps

  1280 × 720@10 fps

  640 × 480@30 fps/25 fps

  640 × 360@30 fps/25 fps

  H264:

  1920 × 1080@30 fps/25 fps

  1280 × 960@30 fps/25 fps

  1280 × 720@30 fps/25 fps

  640 × 480@30 fps/25 fps

  640 × 360@30 fps/25 fps

• Wide Dynamic Range (WDR)≥120 dB

• Interface
• Cable Cable in package ：Type C to Type A interface
• Device Interface USB Type C interface

• Compatibility
• System Requirement

  Recommended systems

  Windows 7/8/10/11

  Android 8.1 and above version

  Linux 4.14 and above version

  macOS 10.12 and above version

  Chrome OS

• General
• Operating Condition-10 °C to 45 °C (14 °F to 113 °F). Humidity 90% or less (non-condensing)
• Material

  Main body: Plastic with cloth

  Base: Metal

• Packing List

  Camera × 1

  Privacy Shutter × 1

  Remote Control (with battery) × 1

  USB 3.0 cable (2 m) × 1

  User Manual Card × 1

• Power5 VDC ± 5% (USB cable), max. 4.5 W
• DimensionØ91.7 mm × 271.3 mm (Ø3.61″ × 10.68″)
• Package Dimension337 mm × 150 mm × 156 mm (13.27″ × 5.91″ × 6.14″)
• Approx. 930 g (2.05 lb.)
• With Package Weight Approx. 1465 g (3.23 lb.)
• Color; Silver gray
